University lecture hall becomes testing lab for noise levels on Yonge North Subway Extension

Sept. 22, 2021
Metrolinx's recent sound test at the York University’s Schulich School of Business demonstrated how modern subway design keeps things peaceful and quiet in communities while subways travel in tunnels below.

Metrolinx recently tested sound levels on its latest sound and vibration technology that is being used to plan and design the Yonge North Subway Extension at York University's Schulich School of Business.

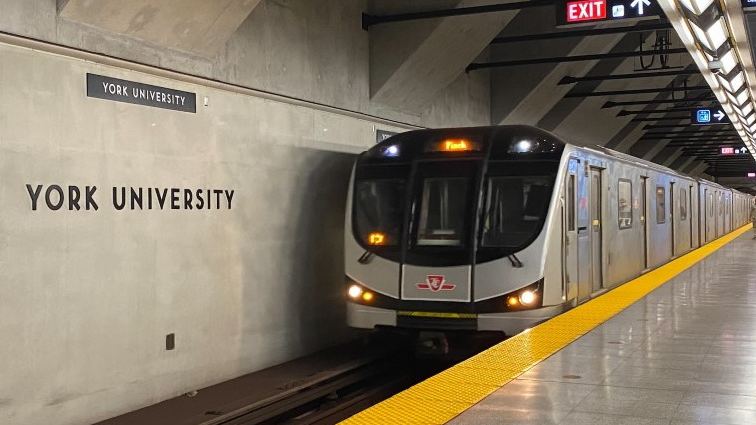

Metrolinx visited the campus with several guests who wanted to learn more about modern subway construction and experience this improved technology in action. The business school’s Seymour Schulich Building has a lecture hall sitting above the tunnels leading into York University Station on Line 1. This section was completed in 2017 and incorporates up-to-date design standards and engineering solutions to reduce the noise and vibration of subway trains passing over the tracks.

To test for any noise and vibration caused by the subways running underneath, the air conditioning and ventilation systems inside the lecture hall were switched off to make the room quiet. A sound level meter was powered up to so that the group could watch any changes in sound levels in real time.

Even in the still silence of the lecture hall, only a faint, momentary murmur could be heard as trains passed directly below the lecture hall. The readout on the acoustic device barely budged from its baseline. Next, for a more challenging test, the group moved downstairs to the unfinished basement – and repeated the experiment in a room that felt like an echo chamber. The results were similar.

“Based on what we’re seeing here, we know the sounds and vibrations from subway trains traveling in the Yonge North Subway Extension’s tunnels will be practically imperceptible,” said Stephen Collins, Metrolinx program sponsor for the project. “In 2021, we have access to a wide range of solutions to address noise and vibration that just weren’t available decades ago, when a lot of our subway lines were built here in the [Greater Toronto Area].”

One of those solutions is called ‘floating slab’ track. It is used extensively along the new part of the Line 1 subway, including the tunnels below Schulich. This method ‘floats’ the rails above the bottom of the tunnels by attaching them to large concrete slabs that are separated from the tunnel walls by thick rubber pads that look like oversized hockey pucks. The pads soak up the vibration from passing trains.

Collins explains that the underground structure for York University Station was built very close to the building that houses the Schulich lecture hall. The unfinished basement of the building, which will soon be used as a new lab, has concrete walls and ceilings that reflect more noise compared to most rooms in a typical residential home, which incorporate materials and finishes that are better at absorbing sound.

“That means any noise or vibration from a subway train passing below the basement would sound louder than it would if that subway was below an average house,” Collins said. This is encouraging because the levels here are extremely hard to notice.”

Early plans for the project put the bottom of the tunnels – where trains pass over the tracks – at least 20 meters (65 feet) below the surface through the Royal Orchard community, which is similar to the depth below Schulich.​ This means the tunnels along the Yonge North Subway Extension will be much deeper underground than many sections of Toronto’s existing subway network.

Experts at Metrolinx are looking at a host of modern noise and vibration solutions for the Yonge North Subway Extension, with the goal of making sure that when it goes into service, there are no significant differences in noise and vibration levels compared to today.

“We’ll use tested and proven solutions to make sure people who live along the subway extension will barely notice it,” said Collins.

Metrolinx is still exploring refinements and improvements to its initial plans for the project, looking at ways to build the subway even deeper and under fewer homes along the section of the route that leaves Yonge Street. Updated environmental studies will inform the exact noise and vibration solutions Metrolinx will use on the project. These will be discussed in future consultations and public open houses with community members.
