Designed to reduce the tire and wheel damages caused by operators curbing tires. These damages have significant financial ramifications due to the loss of productivity and costs associated with the repair/replacement of the tires and wheels.
A collaborative effort with several transit properties was invested on the design requirements.
Looking closely at the financial costs incurred due to the damage to tires and wheels, the labor involved and loss of productivity, it became very apparent there was a considerable financial benefit to the transit properties to implement a system that can help them avoid such situations.
The system is designed to alert operators when the tires are within 2 inches of a curb so they may make a steering correction to prevent tire and wheel damage.
Model 2001 has one programmable ultrasonic sensor located in front of the rear tires.
Model4002 has two programmable ultrasonic sensors, one for each front and rear tires.

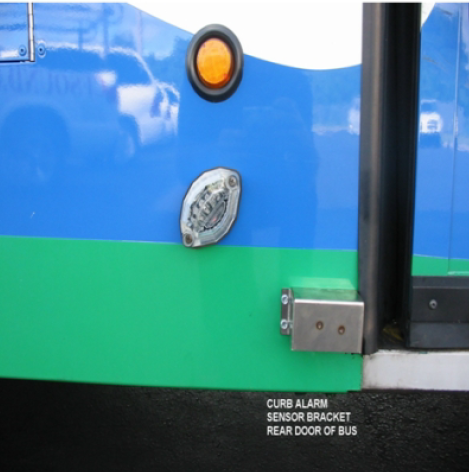

The main components are the programmable ultrasonic sensor, transmitter and receiver. Information from the transmitter located at the rear door panel is transmitted to the receiver by a wireless connection. The unit is powered by 12 or 24 VDC.
System features
- An alarm gives three distinct “BEEPS” for the driver when the driver comes within two (2) inches of the curb, in time for a steering correction.
- If the driver hits the curb, a “TIME” and “DATE” is recorded up to 400 curbing incidents can be stored and downloaded at any time.
- A GPS location is also recorded of the curbing incident along with a Time Stamp.
- Easy to install wireless system.
- Designed for Transit Buses
- Front Tire Sensor Available
