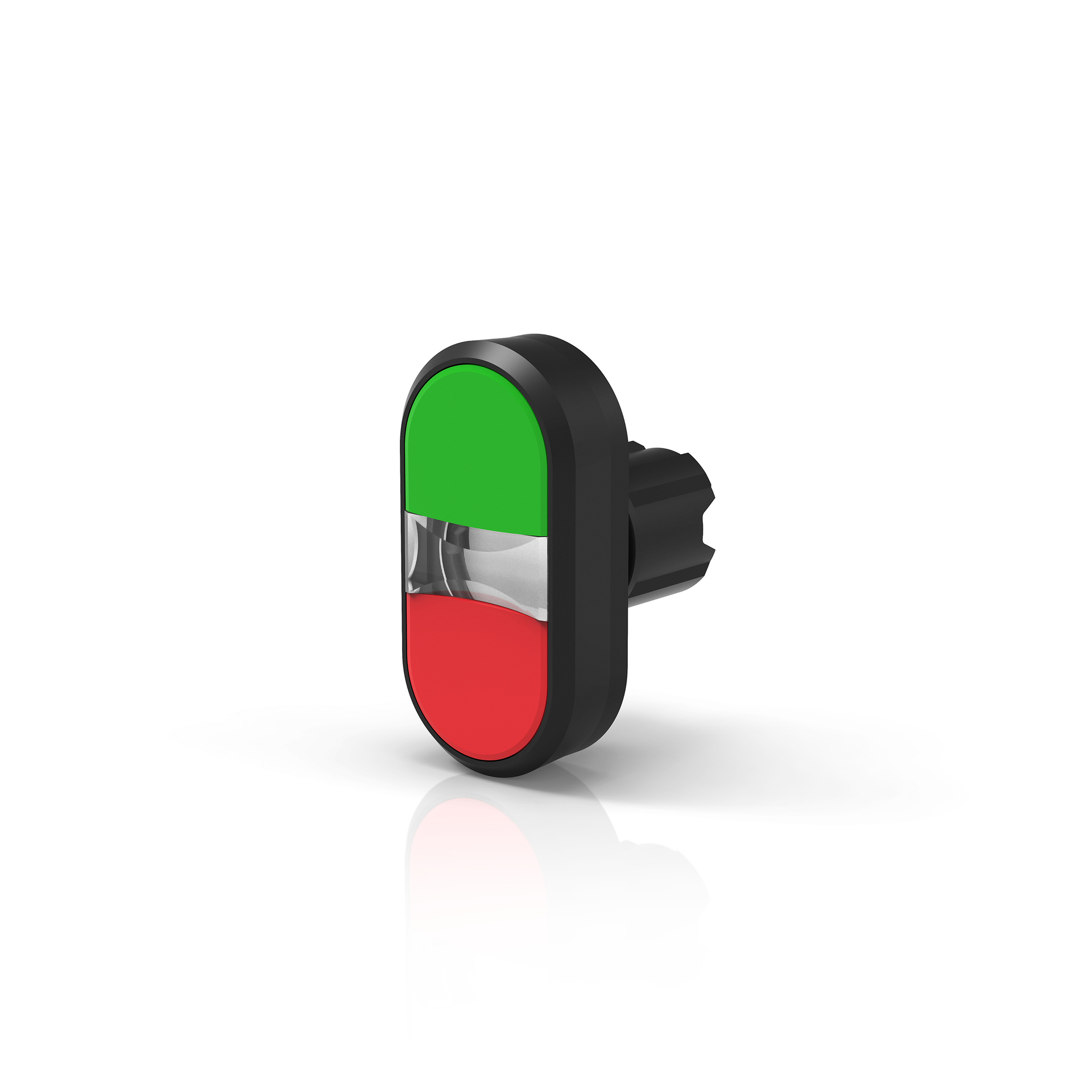

EAO offers the new Series 45 double pushbuttons that unite an extremely broad range of machine operating functions with technical characteristics.
These aesthetic and robust Series 45 double pushbuttons offer additional potential for applications with two independent buttons. They are a cost-effective and space-saving solution that provides two separate pushbuttons in a single device. Double pushbuttons are easy to mount and are ideal for machinery control functions such as stop and start.
Advantages of the double pushbuttons include:
- Compact construction – two switches in one device
- Range of colors and marking options
- IP66, IP67, IP69K protection
- Optional illumination
- Plastic or metal versions
- Up to 3 contacts for each pushbutton
The actuators offer a wide range of configuration possibilities and are available in a red/green or black/white color combination along with a choice of flush or raised lenses. Select from plastic or metal front bezel construction and up to three contacts per pushbutton can be added. Illumination is displayed within the center window between the two buttons. An optional silicon protective cap enables IP66 and IP67 protection, even in the actuated state. The double pushbuttons are available in momentary function without a mutual interlocking mechanism.
